Technical characteristics

Frame Range

H80~450

Power Range

0.55~1000kW

Rated Voltage

380V（Special voltage customization）

Rated Frequency

50Hz（Special frequency customization）

Efficiency Level

IE4

Poles

2、4、6、8極

Protection DegreeIP55Cooling ModeIC411
Insulation ClassFOperation ModeS1
Installation ModeB3、B5、B35、B14、B34、V1Wiring ModeY/?

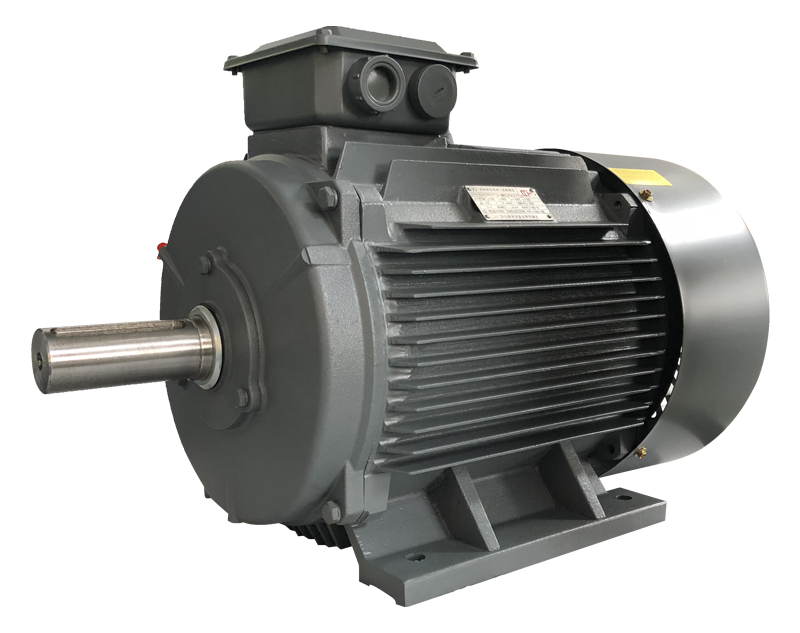

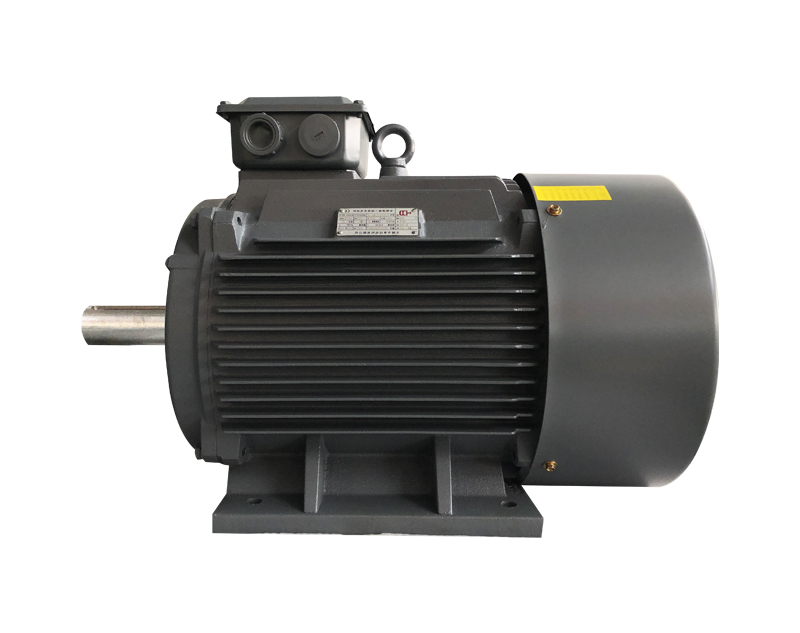

YE4 series three-phase asynchronous motor

YE4 series motor is a fully enclosed, self fan cooled squirrel cage three-phase asynchronous motor made of new materials, new technology and optimized design. This series of motors meet IE4 energy efficiency requirements in iec60034-30-2014 and ye4 performance requirements in JB / t13299-2017. Ye4 series motors have high efficiency, large starting torque, low noise and mature cooling and heat dissipation conditions. This series of motors are general-purpose three-phase asynchronous motors, which can be used to drive all kinds of general mechanical equipment, such as compressors, fans, water pumps and other mechanical equipment. They can also be used in petroleum, chemical industry, medicine, mining and other environments.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
    • ModelPolesRated PowerCurrentRated SpeedRated TorqueEfficiencyPower FactorNoise Protection DegreeInsulation
    Class    		DutyConnectionFrequencyRated
    Voltage
    kWAr/minN·mηcosΦdBHzV
    YE4-80M1-220.751.6 29002.4 83.5 0.83 62 IP55FS1Y50380
    YE4-80M2-221.12.4 29003.5 85.2 0.83 62 IP55FS1Y50380
    YE4-90S-221.53.1 28904.8 86.5 0.85 67 IP55FS1Y50380
    YE4-90L-222.24.4 28957.0 88.0 0.86 67 IP55FS1Y50380
    YE4-100L-2235.9 29059.6 89.1 0.87 74 IP55FS1Y50380
    YE4-112M-2247.7 291012.7 90.0 0.88 77 IP55FS1?50380
    YE4-112L-225.510.4 291017.5 90.9 0.88 77 IP55FS1?50380
    YE4-132S1-225.510.4 295017.5 90.9 0.88 79 IP55FS1?50380
    YE4-132S2-227.514.0 295023.9 91.7 0.89 79 IP55FS1?50380
    YE4-132S3-22916.7 295028.7 92.1 0.89 79 IP55FS1?50380
    YE4-132M-221120.3 295035.0 92.6 0.89 79 IP55FS1?50380
    YE4-132L-221527.4 295047.8 93.3 0.89 79 IP55FS1?50380
    YE4-160M1-221120.3 295535.0 92.6 0.89 81 IP55FS1?50380
    YE4-160M2-221527.4 295547.8 93.3 0.89 81 IP55FS1?50380
    YE4-160L-2218.533.7 295558.9 93.7 0.89 81 IP55FS1?50380
    YE4-160L2-222240.0 295570.0 94.0 0.89 81 IP55FS1?50380
    YE4-180M0-2218.533.7 297058.9 93.7 0.89 83 IP55FS1?50380
    YE4-180M-222240.0 297070.0 94.0 0.89 83 IP55FS1?50380
    YE4-180L1-222545.3 297079.6 94.2 0.89 83 IP55FS1?50380
    YE4-180L2-223054.2 297095.5 94.5 0.89 83 IP55FS1?50380
    YE4-180LX-223766.6 2970117.8 94.8 0.89 83 IP55FS1?50380
    YE4-200L1-223054.2 297595.5 94.5 0.89 84 IP55FS1?50380
    YE4-200L2-223766.6 2975117.8 94.8 0.89 84 IP55FS1?50380
    YE4-200LX-224580.9 2975143.3 95.0 0.89 84 IP55FS1?50380
    YE4-225M-224580.9 2975143.3 95.0 0.89 86 IP55FS1?50380
    YE4-225M2-225598.5 2975175.1 95.3 0.89 86 IP55FS1?50380
    YE4-250M-225598.5 2985175.1 95.3 0.89 89 IP55FS1?50380
    YE4-250M2-2275133.9 2985238.8 95.6 0.89 89 IP55FS1?50380
    YE4-280S-2275133.9 2985238.8 95.6 0.89 91 IP55FS1?50380
    YE4-280M-2290160.4 2985286.5 95.8 0.89 91 IP55FS1?50380
    YE4-280L-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280M2-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280MX-22132234.2 2985420.2 96.2 0.89 91 IP55FS1?50380
    YE4-315S-22110195.6 2990350.2 96.0 0.89 92 IP55FS1?50380
    YE4-315M-22132234.2 2990420.2 96.2 0.89 92 IP55FS1?50380
    YE4-315L1-22160283.6 2990509.3 96.3 0.89 92 IP55FS1?50380
    YE4-315L12-22185327.6 2990588.9 96.4 0.89 92 IP55FS1?50380
    YE4-315L2-22200353.8 2990636.7 96.5 0.89 92 IP55FS1?50380
    YE4-315LX1-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-315LX2-22250432.6 2990795.8 96.5 0.91 92 IP55FS1?50380
    YE4-355M0-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-355M-22250432.6 2990795.8 96.5 0.91 97 IP55FS1?50380
    YE4-355L0-22280484.5 2990891.3 96.5 0.91 97 IP55FS1?50380
    YE4-355L-22315545.0 29901002.8 96.5 0.91 97 IP55FS1?50380
    YE4-355X1-22355621.1 29901130.1 96.5 0.90 97 IP55FS1?50380
    YE4-355X2-22375656.0 29901193.8 96.5 0.90 97 IP55FS1?50380
    YE4-400M1-22355621.1 29851130.1 96.5 0.90 97 IP55FS1?50380
    YE4-400M2-22400699.8 29851273.3 96.5 0.90 97 IP55FS1?50380
    YE4-400M3-22450787.2 29851432.5 96.5 0.90 97 IP55FS1?50380
    YE4-400L1-22500874.7 29851591.7 96.5 0.90 97 IP55FS1?50380
    YE4-400L2-22560968.9 29851782.7 96.5 0.91 97 IP55FS1?50380
    YE4-400L3-226301090.0 29852005.5 96.5 0.91 97 IP55FS1?50380
    YE4-450X1-227101228.5 29902260.2 96.5 0.91 97 IP55FS1?50380
    YE4-450X2-228001384.2 29902546.7 96.5 0.91 97 IP55FS1?50380
    YE4-450X3-229001557.2 29902865.0 96.5 0.91 97 IP55FS1?50380
    YE4-450X4-2210001711.4 29903183.3 96.5 0.92 97 IP55FS1?50380
    YE4-80M1-440.551.3 14403.5 83.9 0.74 56 IP55FS1Y50380
    YE4-80M2-440.751.8 14404.8 85.7 0.74 56 IP55FS1Y50380
    YE4-90S-441.12.6 14507.0 87.2 0.75 59 IP55FS1Y50380
    YE4-90L-441.53.4 14509.6 88.2 0.76 59 IP55FS1Y50380
    YE4-100L1-442.24.7 146014.0 89.5 0.79 64 IP55FS1Y50380
    YE4-100L2-4436.3 146019.1 90.4 0.80 64 IP55FS1Y50380
    YE4-112M-4448.3 146025.5 91.1 0.80 65 IP55FS1?50380
    YE4-112L-445.511.4 146035.0 91.9 0.80 65 IP55FS1?50380
    YE4-132S-445.511.4 147535.0 91.9 0.80 71 IP55FS1?50380
    YE4-132M-447.515.2 147547.8 92.6 0.81 71 IP55FS1?50380
    YE4-132M2-44918.0 147557.3 92.9 0.82 71 IP55FS1?50380
    YE4-132L1-441121.6 147570.0 93.3 0.83 71 IP55FS1?50380
    YE4-132L2-441528.9 147595.5 93.9 0.84 71 IP55FS1?50380
    YE4-160M-441121.6 147570.0 93.3 0.83 73 IP55FS1?50380
    YE4-160M1-441325.1 147582.8 93.6 0.84 73 IP55FS1?50380
    YE4-160L-441528.9 147595.5 93.9 0.84 73 IP55FS1?50380
    YE4-160L2-4418.535.1 1475117.8 94.2 0.85 73 IP55FS1?50380
    YE4-180M0-441732.3 1480108.2 94.1 0.85 76 IP55FS1?50380
    YE4-180M-4418.535.1 1480117.8 94.2 0.85 76 IP55FS1?50380
    YE4-180L0-4420.538.8 1480130.5 94.4 0.85 76 IP55FS1?50380
    YE4-180L-442241.6 1480140.1 94.5 0.85 76 IP55FS1?50380
    YE4-180L2-443056.5 1480191.0 94.9 0.85 76 IP55FS1?50380
    YE4-180LX-443769.5 1480235.6 95.2 0.85 76 IP55FS1?50380
    YE4-200L-443056.5 1485191.0 94.9 0.85 76 IP55FS1?50380
    YE4-200L2-443769.5 1485235.6 95.2 0.85 76 IP55FS1?50380
    YE4-225S-443769.5 1485235.6 95.2 0.85 78 IP55FS1?50380
    YE4-225M-444584.3 1485286.5 95.4 0.85 78 IP55FS1?50380
    YE4-225M2-4455101.5 1485350.2 95.7 0.86 78 IP55FS1?50380
    YE4-250M-4455101.5 1490350.2 95.7 0.86 79 IP55FS1?50380
    YE4-250M2-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250XM-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250MX-4490161.7 1490573.0 96.1 0.88 79 IP55FS1?50380
    YE4-280S-4475136.4 1490477.5 96.0 0.87 80 IP55FS1?50380
    YE4-280M-4490161.7 1490573.0 96.1 0.88 80 IP55FS1?50380
    YE4-280M1-44110195.0 1490700.3 96.3 0.89 80 IP55FS1?50380
    YE4-280MX-44132233.8 1490840.4 96.4 0.89 80 IP55FS1?50380
    YE4-315S-44110195.0 1490700.3 96.3 0.89 88 IP55FS1?50380
    YE4-315M-44132233.8 1490840.4 96.4 0.89 88 IP55FS1?50380
    YE4-315L1-44160279.6 14901018.7 96.6 0.90 88 IP55FS1?50380
    YE4-315L12-44185323.0 14901177.8 96.7 0.90 88 IP55FS1?50380
    YE4-315L2-44200349.2 14901273.3 96.7 0.90 88 IP55FS1?50380
    YE4-315LX1-44220384.1 14901400.7 96.7 0.90 88 IP55FS1?50380
    YE4-315LX2-44250436.5 14901591.7 96.7 0.90 88 IP55FS1?50380
    YE4-355M01-44220384.1 14901400.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M-44250436.5 14901591.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M2-44280488.8 14901782.7 96.7 0.90 92 IP55FS1?50380
    YE4-355L-44315549.9 14902005.5 96.7 0.90 92 IP55FS1?50380
    YE4-355L2-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X1-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X2-44375669.6 14902387.5 96.7 0.88 92 IP55FS1?50380
    YE4-400M1-44355633.9 14902260.2 96.7 0.88 93 IP55FS1?50380
    YE4-400M2-44400714.2 14902546.7 96.7 0.88 93 IP55FS1?50380
    YE4-400M3-44450803.5 14902865.0 96.7 0.88 93 IP55FS1?50380
    YE4-400L1-44500892.7 14903183.3 96.7 0.88 93 IP55FS1?50380
    YE4-400L2-44560988.6 14903565.3 96.7 0.89 93 IP55FS1?50380
    YE4-400L3-446301112.2 14904011.0 96.7 0.89 93 IP55FS1?50380
    YE4-450X1-447101253.5 14904520.3 96.7 0.89 95 IP55FS1?50380
    YE4-450X2-448001396.7 14905093.3 96.7 0.90 95 IP55FS1?50380
    YE4-450X3-449001571.2 14905730.0 96.7 0.90 95 IP55FS1?50380
    YE4-450X4-4410001745.8 14906366.7 96.7 0.90 95 IP55FS1?50380
    YE4-90S-660.752.0 9607.2 82.7 0.70 57 IP55FS1Y50380
    YE4-90L-661.12.8 96010.5 84.5 0.70 57 IP55FS1Y50380
    YE4-100L-661.53.7 96514.3 85.9 0.71 61 IP55FS1Y50380
    YE4-112M-662.25.4 94021.0 87.4 0.71 65 IP55FS1Y50380
    YE4-132S-6637.2 97528.7 88.6 0.71 69 IP55FS1Y50380
    YE4-132M1-6649.4 97538.2 89.5 0.72 69 IP55FS1?50380
    YE4-132M2-665.512.8 97552.5 90.5 0.72 69 IP55FS1?50380
    YE4-160M-667.516.4 98071.6 91.3 0.76 73 IP55FS1?50380
    YE4-160L-661123.5 980105.1 92.3 0.77 73 IP55FS1?50380
    YE4-180L-661530.7 985143.3 92.9 0.80 73 IP55FS1?50380
    YE4-180L2-661734.6 985162.4 93.2 0.80 73 IP55FS1?50380
    YE4-180L3-6620.541.1 985195.8 93.6 0.81 73 IP55FS1?50380
    YE4-200L1-6618.537.6 985176.7 93.4 0.80 73 IP55FS1?50380
    YE4-200L2-662244.0 985210.1 93.7 0.81 73 IP55FS1?50380
    YE4-225M-663059.0 985286.5 94.2 0.82 74 IP55FS1?50380
    YE4-250M-663771.7 990353.4 94.5 0.83 76 IP55FS1?50380
    YE4-280S-664586.9 990429.8 94.8 0.83 78 IP55FS1?50380
    YE4-280M-6655104.6 990525.3 95.1 0.84 78 IP55FS1?50380
    YE4-315S-6675142.2 990716.3 95.4 0.84 83 IP55FS1?50380
    YE4-315M-6690168.3 990859.5 95.6 0.85 83 IP55FS1?50380
    YE4-315L1-66110205.2 9901050.5 95.8 0.85 83 IP55FS1?50380
    YE4-315L2-66132242.9 9901260.6 96.0 0.86 83 IP55FS1?50380
    YE4-355M1-66160293.8 9901528.0 96.2 0.86 85 IP55FS1?50380
    YE4-355M12-66185339.4 9901766.8 96.3 0.86 85 IP55FS1?50380
    YE4-355M2-66200366.9 9901910.0 96.3 0.86 85 IP55FS1?50380
    YE4-355M3-66220403.2 9902101.0 96.4 0.86 85 IP55FS1?50380
    YE4-355L-66250457.7 9902387.5 96.5 0.86 85 IP55FS1?50380
    YE4-355L2-66280524.3 9902674.0 96.6 0.84 85 IP55FS1?50380
    YE4-355X1-66315604.2 9903008.3 96.6 0.82 91 IP55FS1?50380
    YE4-400M1-66315604.2 9903008.3 96.6 0.82 92 IP55FS1?50380
    YE4-400M2-66355680.9 9903390.3 96.6 0.82 92 IP55FS1?50380
    YE4-400L1-66400758.0 9903820.0 96.6 0.83 92 IP55FS1?50380
    YE4-400L2-66450852.8 9904297.5 96.6 0.83 92 IP55FS1?50380
    YE4-400L3-66500947.5 9904775.0 96.6 0.83 92 IP55FS1?50380
    YE4-450X0-665601048.6 9905348.0 96.6 0.84 95 IP55FS1?50380
    YE4-450X1-666301179.6 9906016.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X2-666701254.5 9906398.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X3-667101329.4 9906780.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X4-667501404.3 9907162.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X5-668001498.0 9907640.0 96.6 0.84 95 IP55FS1?50380
    YE4-100L1-880.752.2 7109.6 78.4 0.66 59 IP55FS1Y50380
    YE4-100L2-881.13.1 71014.0 80.8 0.67 59 IP55FS1Y50380
    YE4-112M-881.54.0 71019.1 82.6 0.69 61 IP55FS1Y50380
    YE4-132S-882.25.7 72528.0 84.5 0.70 64 IP55FS1Y50380
    YE4-132M-8837.6 72538.2 85.9 0.70 64 IP55FS1Y50380
    YE4-160M1-8849.8 73050.9 87.1 0.71 68 IP55FS1?50380
    YE4-160M2-885.513.1 73070.0 88.3 0.72 68 IP55FS1?50380
    YE4-160L-887.517.2 73095.5 89.3 0.74 68 IP55FS1?50380
    YE4-180L-881125.0 735140.1 90.4 0.74 70 IP55FS1?50380
    YE4-200L-881533.3 735191.0 91.2 0.75 73 IP55FS1?50380
    YE4-225S-8818.540.9 740235.6 91.7 0.75 73 IP55FS1?50380
    YE4-225M-882247.8 740280.1 92.1 0.76 73 IP55FS1?50380
    YE4-250M-883063.9 740382.0 92.7 0.77 75 IP55FS1?50380
    YE4-280S-883777.4 740471.1 93.1 0.78 76 IP55FS1?50380
    YE4-280M-884593.9 740573.0 93.4 0.78 76 IP55FS1?50380
    YE4-315S-8855111.5 745700.3 93.7 0.80 82 IP55FS1?50380
    YE4-315M-8875151.2 745955.0 94.2 0.80 82 IP55FS1?50380
    YE4-315L1-8890178.8 7451146.0 94.4 0.81 82 IP55FS1?50380
    YE4-315L2-88110217.9 7451400.7 94.7 0.81 82 IP55FS1?50380
    YE4-315L3-88132260.9 7451680.8 94.9 0.81 82 IP55FS1?50380
    YE4-355M1-88132260.9 7451680.8 94.9 0.81 89 IP55FS1?50380
    YE4-355M2-88160311.7 7452037.3 95.1 0.82 89 IP55FS1?50380
    YE4-355M3-88185359.7 7452355.7 95.3 0.82 89 IP55FS1?50380
    YE4-355L-88200388.5 7452546.7 95.4 0.82 89 IP55FS1?50380
    YE4-355L2-88220432.6 7452801.3 95.4 0.81 89 IP55FS1?50380
    YE4-355X1-88250497.7 7453183.3 95.4 0.80 89 IP55FS1?50380
    YE4-355X2-88315627.1 7454011.0 95.4 0.80 89 IP55FS1?50380
    YE4-400M1-88250497.7 7453183.3 95.4 0.80 91 IP55FS1?50380
    YE4-400M2-88280557.4 7453565.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L1-88315627.1 7454011.0 95.4 0.80 91 IP55FS1?50380
    YE4-400L2-88355706.7 7454520.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L3-88400796.3 7455093.3 95.4 0.80 91 IP55FS1?50380
    YE4-450X1-88450884.8 7455730.0 95.4 0.81 93 IP55FS1?50380
    YE4-450X2-88500983.1 7456366.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X3-885601101.1 7457130.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X4-886301238.7 7458022.0 95.4 0.81 93 IP55FS1?50380
